Name: ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for Poleline Hardware
Brand: Ningbo Yokelink Machinery Co.,Limited
SKU: OEM
Price: 2.00 USD
Availability: InStock

Home Products Poleline Hardware

ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for Poleline Hardware

Product Details:

Place of Origin:	China
Brand Name:	Yokelink
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	$1.0-$3.0
Packaging Details:	Carton & Pallet
Delivery Time:	35-40days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Application:	Side-of-Pole Installation	Material:	Carbon Steel
Finish:	ASTM A-153

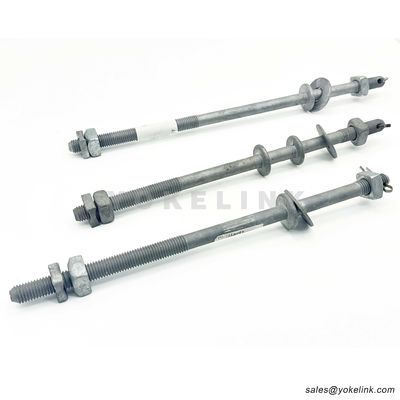

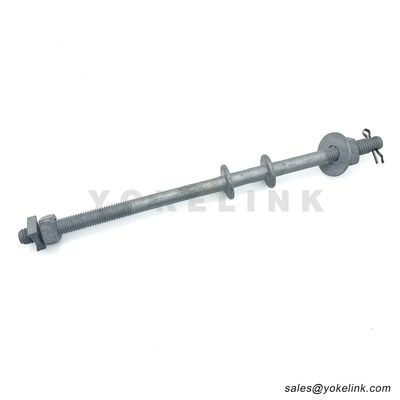

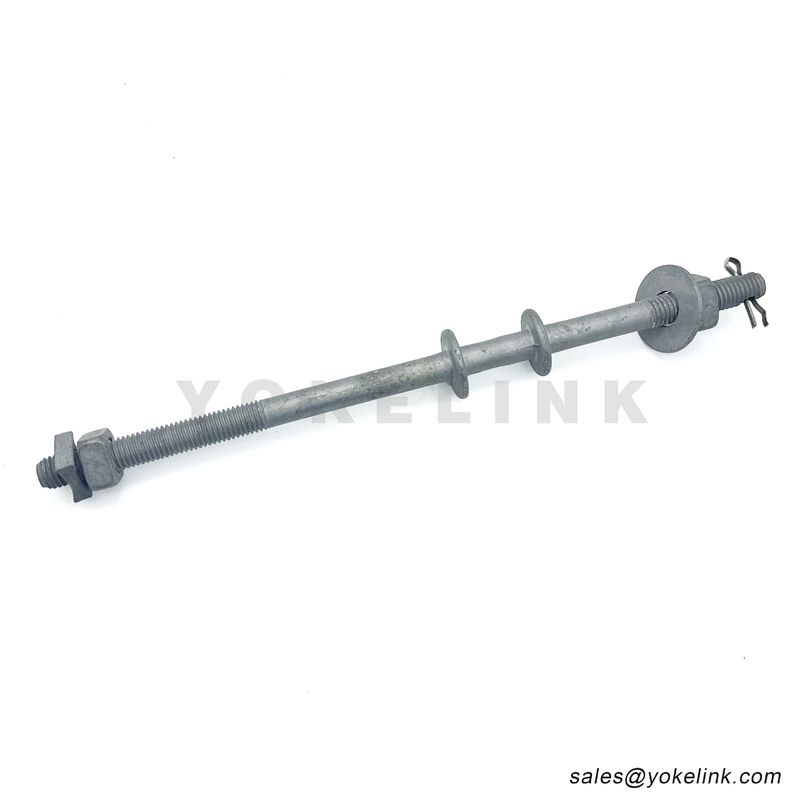

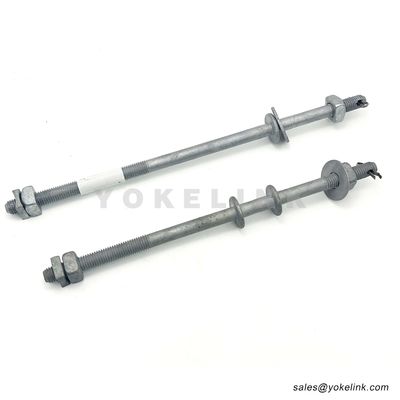

Spool Bolt

Yokelink spool bolt is an important component used in overhead power lines. There are single-upset and double-upset.Usually made of high - strength metal materials, it has excellent anti - tensile and anti - shear properties. This bolt is designed to connect and fasten various poleline hardware components, ensuring the stability and reliability of the power line system. With fine - threaded design, it can achieve a firm connection and is resistant to vibration and loosening.

Spool Bolt Features

6" thread length and cone pointed end

Overall length is 16-3/4"

Includes one square nut with cotter key

Rated cantilever load is 1,900 lbs.

Hot dip galvanized per ASTM A-153

Manufactured in compliance with ANSI C135.31

RUS listed, q - Bolt, double upset

Spool Bolt Specification:

Buy Spool Bolt from Yokelink

For utility neutral and secondary lines, the Yokelink brand offers ANSI class spool insulators along with the necessary clevises, racks, and spool bolts for installation. Screw and clamp-type porcelain and nylon wireholders are offered for service drops. All items are in compliance with applicable electric utility industry standards.
