Name: 42CrMo Oil Grooves Steel Bucket Bush for Excavator Digger
Brand: Ningbo Yokelink Machinery Co.,Limited
SKU: OEM
Price: 0.15 USD
Availability: InStock

Home Products Excavator Spare Parts Steel Bearings Bucket Bushing and Pin

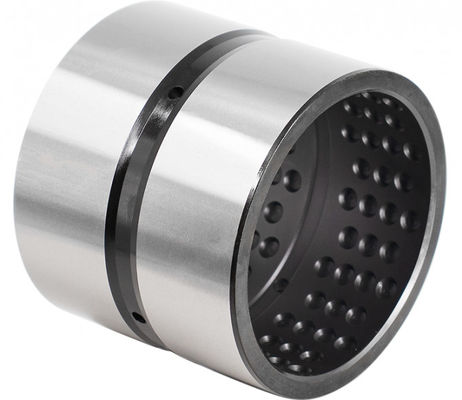

42CrMo Oil Grooves Steel Bucket Bush for Excavator Digger

Product Details:

Place of Origin:	China
Brand Name:	Yokelink
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	$0.15-$1.5
Packaging Details:	Carton & Pallet
Delivery Time:	35-40days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Features:	Wear Resistance	Applicable:	Industry Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Farms, Construction Works, Energy &Amp; Mining, Restaurant, Food &Amp; Beverage Shops, Retail, Home Use, Food Shop
Place Of Origin:	China	Species:	Flanged
Bush Types:	Flange, Grooves	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining,
Product Material:	Steel+Porous Bronze+PTFE	Standard:	DIN1494
Surface Treatment:	Phosphating Black	HRC:	58-62

Premium Steel Bucket Bushing For Heavy Duty Joint Parts

Yokelink steel bushing bearing is based on 45#,40Cr, 20CrMo, GCr15 and other materials. From raw materials to finished products, each process is strictly controlled to ensure the product quality. lt produces bushing with high wear resistance, high surface hardness and strong internal toughness.

The inner surface of steel bushing bearing is processed with various types of oil grooves, which improves the surface hardness and wear resistance after heat treatment. It is suitable for heavy-duty joint parts of construction machinery such as excavators, rotary drilling rigs, large loaders, wall grab and so on.

Steel Bucket Bushing Features:

Hardness: HRC 50-62

Maxload: 80 N/mm²

Max Linear Velocity: 0.1 m/s

Max PV Value: 2 m/min

Working Temperature Limit: -70~+300 ℃

Linear Expension Coefficient: 1.1

Steel Bucket Bushing Optional Material:

42CrMo-Super high strength steel

40Cr-Medium carbon quenched and tempered steel

20CrMo/20CrMnTi-Low carbon alloy steel

Gcr15-Bearing steel

45#-Carbon steel

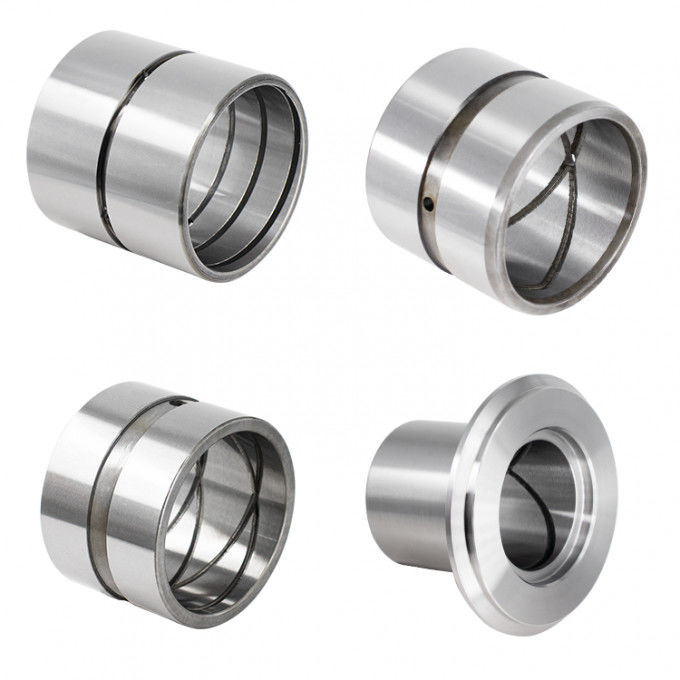

Customized Size Bucket Bushings

We can customize Bucket Bush processing according to customer drawings, process, tolerancerequirements, style, quantity, and the following is the processing scope.

For specificdimensions, please contact pre-sales customer service.

Bucket Bush Inner Diameter Range: 25mm-250mm
Bucket Bush Outer Diameter Range: 35mm-300mm
Bucket Bush Height Range: 10mm-400mm
Bucket Bush Outer Diameter Range: 45mm-300mm

Yokelink Bucket Bush Adavantage:
