Name: 55-7 Electrical Porcelain Ceramic Pin Type Insulators For Poleline Hardware
Brand: Ningbo Yokelink Machinery Co.,Limited
SKU: OEM
Price: 2.00 USD
Availability: InStock

Home Products Poleline Hardware

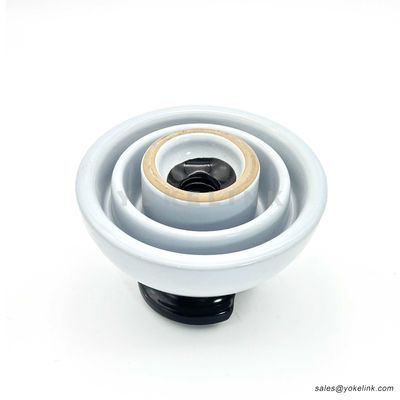

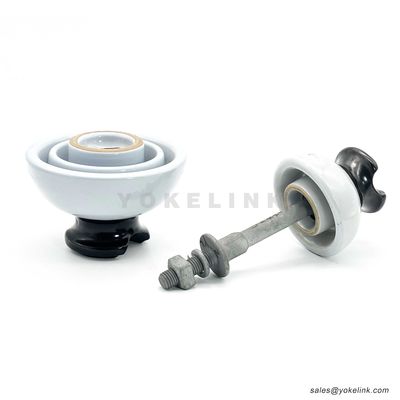

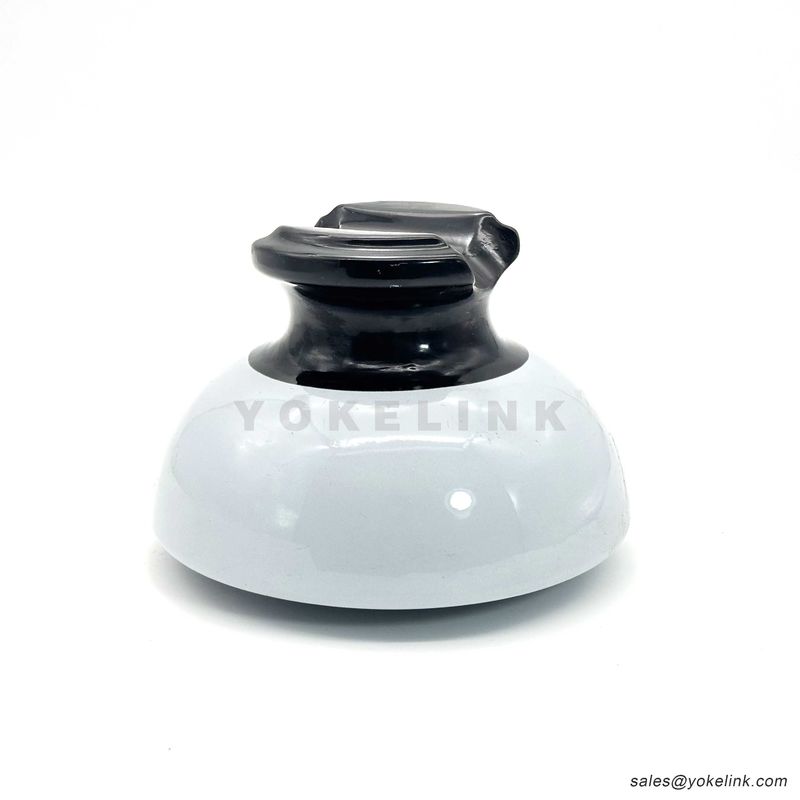

55-7 Electrical Porcelain Ceramic Pin Type Insulators For Poleline Hardware

Product Details:

Place of Origin:	China
Brand Name:	Yokelink
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	$1.0-$3.0
Packaging Details:	Carton & Pallet
Delivery Time:	35-40days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Certification:	CCC, CE, ISO9001	Insulator Fittings:	Ball, Socket, Tongue,
Usage:	High Voltage Power Transmission, Insulation, Driving, Electrical Installation

Pin Type Insulator

Pin type insulators are key components in overhead power transmission systems, designed to support electrical conductors while ensuring electrical insulation and mechanical stability. Made from high-quality porcelain or composite materials, they feature a cylindrical shape with a pin or bolt for mounting on utility poles.

Pin Type Insulator Features:

Manufactured according to ANSI C29.5

Supports low to medium voltage lines

Capable of withstanding physical stress and environmental factors, prolonging service life

Designed to perform under varities of weather conditions

Ideal for both urban and rural power distribution networks

Essential Properties of A Pin Insulator

While looking for pole line insulators, ensure that it has the following basic properties:

High mechanical strength: The pin insulator should be strong and sturdy enough to withstand mechanical forces such as wind load.

Excellent electrical resistance: The resistance of the insulator to electricity should be high to prevent voltage leakage.

Non-porous: The pin insulator material should not permit any impurities to get in and disrupt the performance of the insulator.

Should have a high ratio of puncture strength to flashover.

Buy Pin Type Insulator From Yokelink

For utility neutral and secondary lines, the Yokelink brand offers ANSI class spool insulators along with the necessary clevises, racks, and spool bolts for installation. Screw and Clamp-type porcelain and nylon wireholders are offered for service drops. All items are in compliance with applicable electric utility industry standards.
