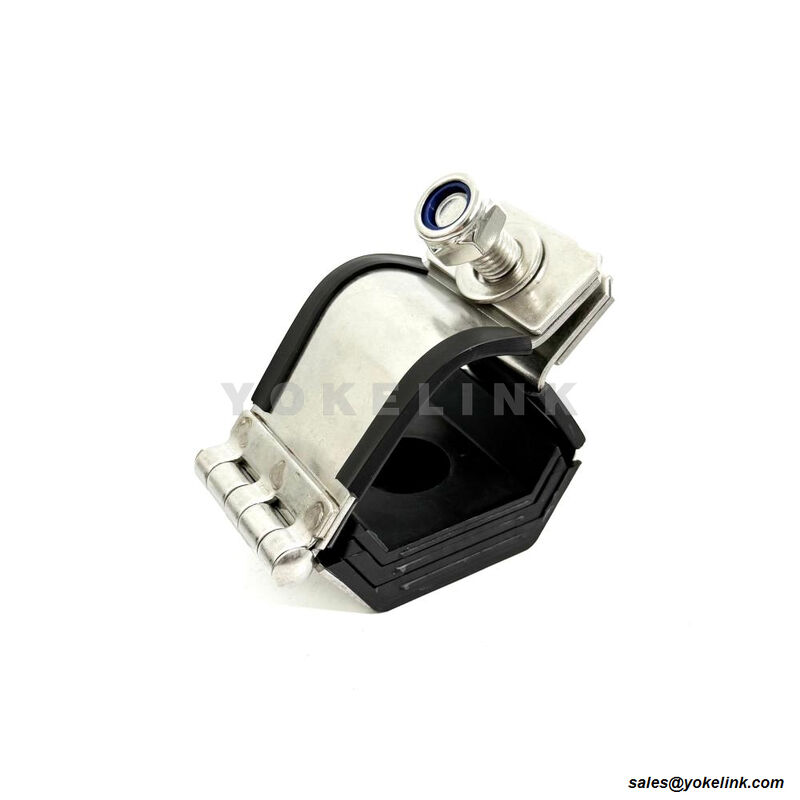

IEC61914 Stainless Steel Trefoil Type Cable Cleats FF-T For 11kv 33kv

Product Details:

Place of Origin:	CHINA
Brand Name:	Yokelink
Certification:	IEC 61914

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	$6.5~$9.5
Packaging Details:	Carton&Pallet
Delivery Time:	40days
Payment Terms:	L/C, T/T
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:	Trefoil Type Cable Cleats FF-T	Material:	316L Stainless Steel , Non-magnetic
Metal Frame:	50*2.1mm 316L Stainless Steel	Integral Pad:	Low Smoke, Low Fume, Halogen Free
Certificate:	Approved By DNV GL (Det Norske Veritas) And ABS, CE	Standard:	IEC 61914:2021
Short Circuit Test:	IEC 61914 Passed

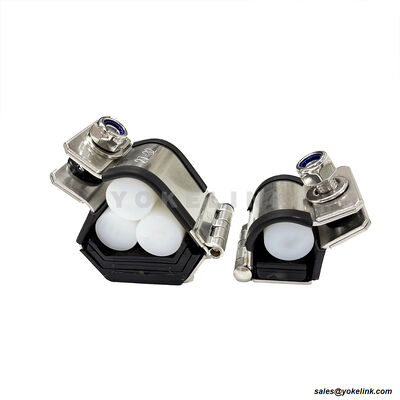

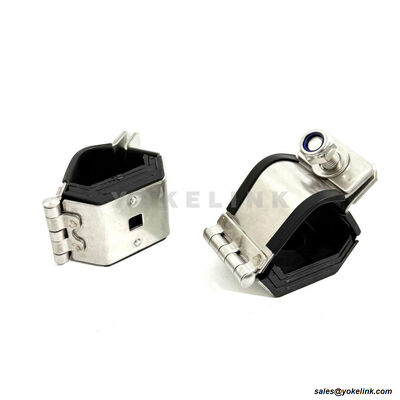

IEC61914 Stainless Steel Trefoil Type Cable Cleats FF-T Series

Yokelink Cable Cleats Engineered to IEC 61914 standards, provides ultimate shortcircuit protection for high-voltage cable systems. Featuring a heavy-duty 50x2.1mm nonmagnetic 316L stainless steel frame, it eliminates eddy current heating while ensuring superior corrosion resistance. Integrated with LSZH (Low Smoke Zero Halogen) pads and vibration-proof 316L locking hardware, these composite cleats offer a secure solution for demanding marine, oil & gas,Offshore vessels, wind power, data centers, subways and utility applications. Available for Single Type, Trefoil Type and Quad Type.

Resistance to Electromechanical Force:

Test Cable Outer Dia: 35mm

9.5.2 180kA Perk 300mm Spacing

9.5.3 125kA Perk 600mm Spacing

Trefoil Type Cable Cleats characteristic:

● Cleat Material: 316 L Stainless Steel, Non-magnetic

● Mounting Bolts: 316L SS, M6/M8/M10/M12 bolts available and Nylon Lock Nuts

● Intergral Pad: Low Smoke, Low Fume, Halogen Free

● Recommended Installation Spacing: 300mm or 600mm

● Packing Methods: Each unit packed in plastic bag first, then packed in strong cartons.

Trefoil Type Cable Cleats Specifications:

For three cables, Tested to IEC 61914: 180kA Peak at 300mm spacing

Part No.	Applicable Cable Range				Weight
Part No.	Outer Diameter ФD (mm)				Kg / PC
FF-T1823	17-18	19-20	22-23		0.410
FF-T2328	22-23	24-25	27-28		0.450
FF-T2732	26-27	28-29	31-32		0.485
FF-T3035	29/30	32/33	34/35		0.512
FF-T3338	32-33	34-35	37-38		0.535
FF-T3642	35-36	37-38	41-42		0.580
FF-T4046	39-40	43-44	45-46		0.615
FF-T4450	43-44	46-47	49-50		0.650
FF-T4855	47-48	50-51	54-55		0.707
FF-T5562	54-55	56-57	59-60	61-62	0.771
FF-T5966	58-59	60-61	63-64	65-66	0.808
FF-T6370	62-63	64-65	64-68	69-70	0.844
FF-T6774	66-67	68-69	71-72	73-74	0.881
FF-T7178	70-71	72-73	77-78		0.919

Please contact us for complete size and model information.

DNV,ABS,CE,Short circuit test report, low smoke halogen-free report

Yokelink Cable Cleats with LSZH Pads: Our integral pads are Low Smoke, Low Fume, and Halogen Free, ensuring maximum personnel safety in confined spaces. Combined with 316L SS frames, they provide IEC 61914 certified short-circuit protection for marine, tunnel, and utility projects. Buy high-safety cable supports now.

Standardized Protection: Fully tested for short-circuit protection in accordance with IEC 61914, providing a critical line of defense for personnel and infrastructure.

Easy Installation: Only a standard wrench is required; includes all necessary mounting hardware for immediate deployment.

Yokelink FF-T Trefoil Cable Cleat Cross-Reference Guide

Looking for Ellis EMPEROR Trefoil and CMP HINGELESS (SDSSH) and ENDURANCE (SDSS-C) equivalents? Yokelink FF-T series cable cleats offer a 2.1mm 316L SS frame and LSZH pads. IEC 61914 certified with 180kA short-circuit protection. High-performance, cost-effective alternatives for marine and utility projects.

Yokelink FF-T series is a direct equivalent to Ellis EMPEROR Trefoil and CMP HINGELESS (SDSSH) and ENDURANCE (SDSS-C), Panduit CCSSTR

YOKELINK Part No.	Cable OD (mm)	CMP	Ellis EMPEROR TREFOIL	Panduit
FF-T2328	23-28	HDSS023028/SDSS023028/SDSS023028H	ER23-28	CCSSTR2328-X
FF-T2732	26-32	HDSS027032/SDSS027032/SDSSC-027032	ER27-32/ER27-32TFM12-X	CCSSTR2632-X
FF-T3035	30-36	HDSS030035/SDSS030035/SDSSC-030035	ER30-35/ER30-35TFM12-X	CCSSTR3036-X
FF-T4046	40-46	HDSS040046/SDSS040046/DSS040046H	ER40-46/ER40-46TFM12-X	CCSSTR4248-X

All third-party product names, logos, and brands (such as Panduit, Ellis Patents, and CMP) are property of their respective owners. Their use in this guide is for identification and cross-reference purposes only, and does not imply any affiliation with or endorsement by them. Yokelink FF Series are independent, high-performance alternatives engineered to meet or exceed industry standards.

Why choose YOKELINK as the "best alternative"?

1. Higher Specifications:

YOKELINK's frame thickness is 2.1mm, slightly thicker than the industry standard of 2.0mm,

resulting in greater structural stability under extreme short-circuit forces.

2. Materials Comparable:

Both use 316L non-magnetic stainless steel and LSZH (Low Smoke Halogen-Free) gaskets,

ensuring compliance in harsh environments such as marine and oil/gas spill conditions.

3. Installation Compatibility:

The mounting hole design references mainstream international standards,

allowing direct installation on existing Panduit or Ellis dedicated cable trays for seamless switching.

How to select Cable Cleats?

1. Know the Cables

- Which type of cable is being used, Single or Multi-Conductor?

- What is the outer diameter of Cables?

- What is the available short circuit current (RMS or IP Peak) of the cable?

- If a ground wire is installed in the cleats, know the outer Diameter of the ground wire.

2. Know the System and Cleat Types

- What is the cable formation, Single or Trefoil?

- What type of the cable tray is installed?

If you have any questions or confusion on selecting the cleats models for different cables, please feel free to send us the inquiry details, Our team is ready to offer any clarification or customization options to meet your needs.

Download Yokelink Cable Cleats Catalogue Right Now!
