Home ProductsCable Cleats And Fittings

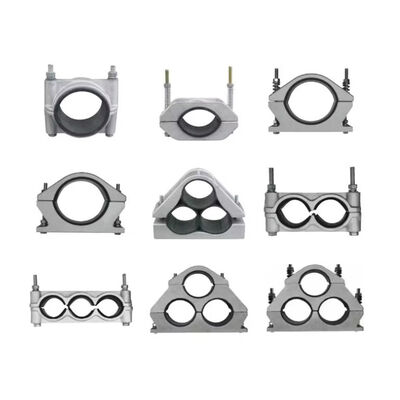

CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On

CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On

    • CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On
    • CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On
    • CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On

    Product Details:

    Place of Origin: CHINA
    Brand Name: Yokelink

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: >=1000 US$3.95
    Packaging Details: Carton&Pallet
    Delivery Time: 40days
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    Material: Aluminum Alloy 6061-T6/7075-T6 Size: Anodizing

    Cast Aluminium Single Bolt Trefoil Cable Cleats

    CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On

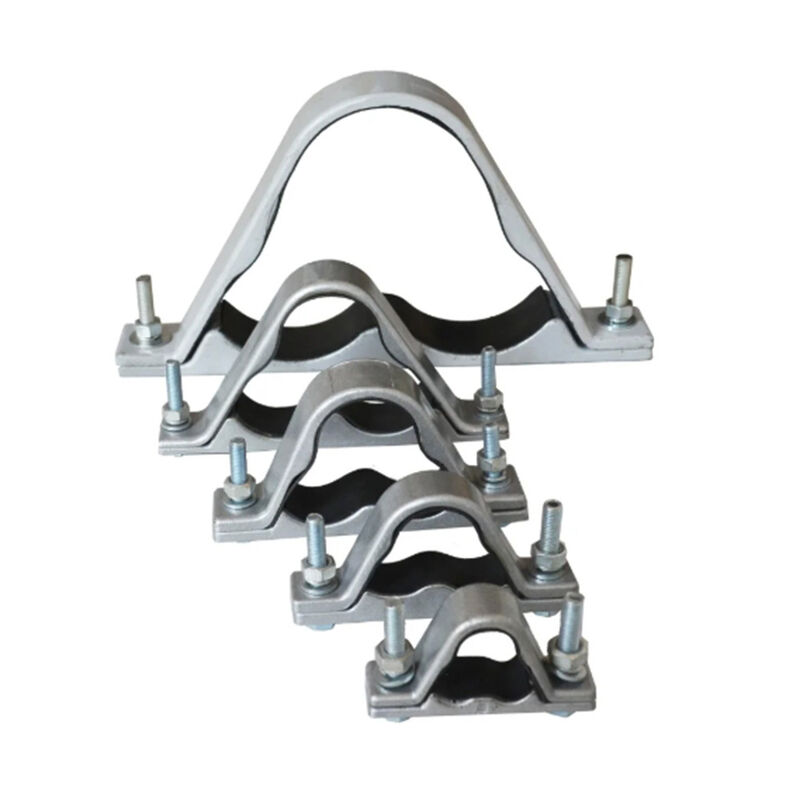

    Cast Aluminium Single bolt variant of the traditional cast aluminium cable cleat, suitable for installing three single-core cables in trefoil formation. Used throughout the world for decades, the aluminium cleat is manufactured using a casting process from LM6 grade aluminium alloy. The standard single bolt variant is suitable for normal industrial or outdoor (unpolluted) applications. An epoxy coated variant is also available with stainless steel fasteners for use in extreme or contaminated environments.

    Short circuit withstand tested: 30kA RMS (76kA peak).

    M10 Trefoil cleat fixing kits enable easy fixing of the cleat to cable ladder rungs or 41mm wide steel channel. Included in each kit: M10 BZP hexagon set screw, M10 flat washer and M10 plain channel nut.


    Cast Aluminium Cable Cleats Features:

    Cast Aluminium Cable cleats High Grade Aluminium LM6
    Available in either a single bolt or two bolt fixing design
    Aluminium Cable cleats Can be used for all types of cable routes
    Available in epoxy coated version for more hostile environments
    fixed with either one or two M10 fixings
    Aluminium Cable cleats Available in 33 sizes

    Cast Aluminium Cable cleats Specifications:

    CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On

    CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On


    CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On

    Cast Aluminium Cable cleats Impact Resistance: Rated “Very Heavy” (5 kg at 400 mm), providing excellent durability.
    Resistance to Electromechanical Force: Capable of withstanding short-circuit forces up to 96 kA (peak) at 600 mm centers for a single short-circuit event.
    Temperature Range: -40 to +90 °C for aluminium base and up to +60 °C for the polymeric base version.
    Needle Flame Test: Withstands over 120 seconds of application time, ensuring flame resistance.
    Axial Movement Test: Can handle axial loads of up to 440 Newtons (N).


    Yokelink Cast Aluminium Cable cleats Compliance with International Standards:


    Yokelink Cast Aluminium Cable cleats meet International Standard IEC 61914:2009, ensuring high-quality performance and safety. Yokelink Cast Aluminium Cable cleats are rigorously tested for impact resistance, resistance to electromechanical force, and other critical factors to guarantee reliability.



    Cast Aluminium Cable Cleats Application:


    Cast Aluminium Cable Cleats are suitable for use at amaximum fault level of 3OkA rms.Recommended maximum spacings,straight runs 900mm, vertical bends300mm and horizontal bends on eachsupport with, if necessary,intermediateunanchored cleats to limit resistancespacing to 300mm.In all applications the cleats should bemounted on either one or two M10 fixings asappropriate.lt is essential that they aresecured to supports capable of withstandingthe prospective short circuit forces.

    CCAL1H2732-X Aluminium One-Hole Single Cable Cleat 1.06-1.26in OD The Aluminum One-Hole single cable cleat is ideal for lower to medium short circuit faults in less corrosive environments. Aluminum On

    1. Power Transmission and Distribution Networks

    Aluminium cable cleats are widely used in high-voltage (HV) and medium-voltage (MV) power grids, where large-diameter cables (e.g., XLPE-insulated cables) require secure anchoring.


    2. Building and Construction Industry

    In commercial and residential buildings, aluminium cable cleats play a key role in organizing and securing low-voltage (LV) power cables, data cables, or communication lines.


    3. Rail and Transportation Infrastructure

    Railways, metros, and tram systems rely on aluminium cable cleats to secure power and signaling cables, where vibration, mechanical shock, and dynamic loads are prevalent.


    4. Industrial Facilities

    In factories, refineries, and manufacturing plants, aluminium cable cleats manage cables in harsh or demanding environments.
