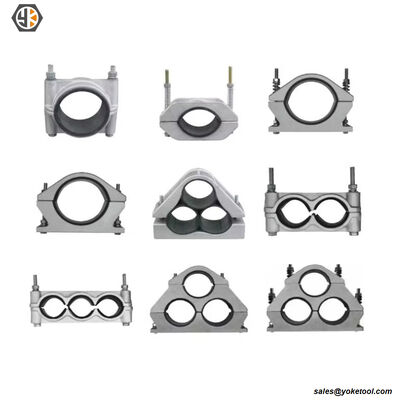

Name: IEC 61914 Aluminium Trefoil Cleats With Single Bolt Fixing
Brand: Ningbo Yokelink Machinery Co.,Limited
Price: 501.50 USD
Availability: InStock

Home Products Cable Cleats And Fittings

IEC 61914 Aluminium Trefoil Cleats With Single Bolt Fixing

Product Details:

Place of Origin:	CHINA
Brand Name:	Yokelink

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	>=1000 US$3.5
Packaging Details:	Carton&Pallet
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Aluminium Trefoil Cleats Material:	Aluminium	Aluminium Trefoil Cleats Size:	Mutiple Sizes 24~75mm

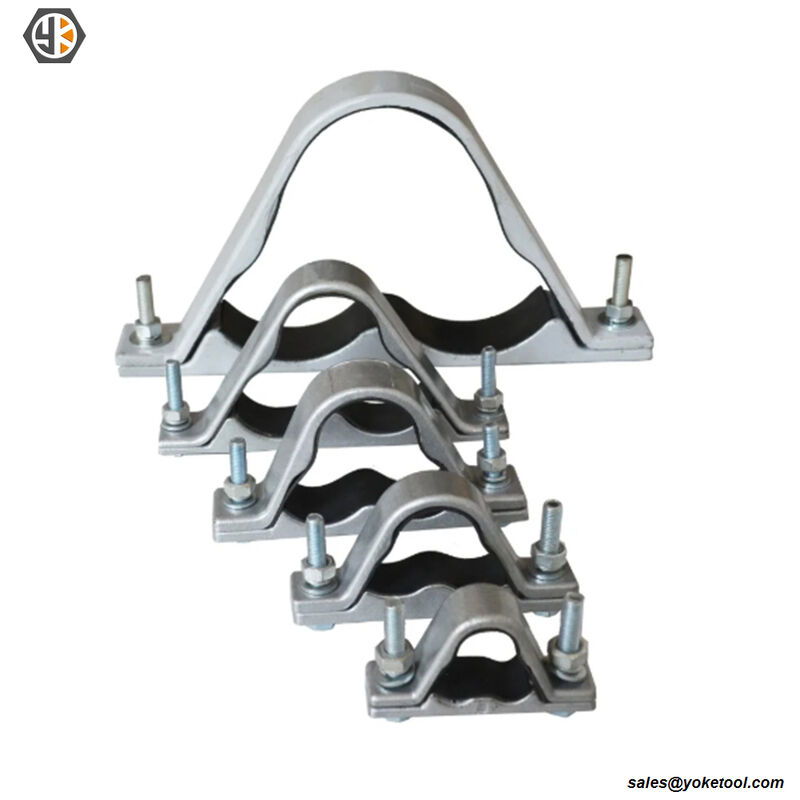

Single Bolt Aluminium Trefoil Cable Cleats For Indoor/Outdoor

Aluminium Cable cleats ensure that cables remain contained in the event of a short circuit fault to minimize disruption and damage to people and property. Aluminium Cable cleats utilize stainless steel strapping with heads or buckles, hinged designs, flameresistant polymers, aluminum, locking nuts, and corrosion resistant hardware to fix cables onto trays and other surfaces far more securely than alternatives such as Velcro and conduit clamps. Aluminium Cable cleats are available to support a variety of configurations, such as single/multicore, trefoil, and quadrafoil.

Aluminium Cable Cleats Features:

Aluminium Cable cleats High Grade Aluminium LM6

Available in either a single bolt or two bolt fixing design

Aluminium Cable cleats Can be used for all types of cable routes

Available in epoxy coated version for more hostile environments

fixed with either one or two M10 fixings

Aluminium Cable cleats Available in 33 sizes

Aluminium Cable cleats Specifications:

Aluminium Cable cleats Impact Resistance: Rated “Very Heavy” (5 kg at 400 mm), providing excellent durability.

Resistance to Electromechanical Force: Capable of withstanding short-circuit forces up to 96 kA (peak) at 600 mm centers for a single short-circuit event.

Temperature Range: -40 to +90 °C for aluminium base and up to +60 °C for the polymeric base version.

Needle Flame Test: Withstands over 120 seconds of application time, ensuring flame resistance.

Axial Movement Test: Can handle axial loads of up to 440 Newtons (N).

Yokelink Aluminium Cable Cleats Compliance with International Standards:

Yokelink Aluminium Cable Cleats meet International Standard IEC 61914:2009, ensuring high-quality performance and safety. Yokelink Aluminium Cable Cleats are rigorously tested for impact resistance, resistance to electromechanical force, and other critical factors to guarantee reliability.

Aluminium Cable Cleats Application:

Aluminium Cable Cleats are suitable for use at amaximum fault level of 3OkA rms.Recommended maximum spacings,straight runs 900mm, vertical bends300mm and horizontal bends on eachsupport with, if necessary,intermediateunanchored cleats to limit resistancespacing to 300mm.In all applications the cleats should bemounted on either one or two M10 fixings asappropriate.lt is essential that they aresecured to supports capable of withstandingthe prospective short circuit forces.

1. Power Transmission and Distribution Networks

Aluminium cable cleats are widely used in high-voltage (HV) and medium-voltage (MV) power grids, where large-diameter cables (e.g., XLPE-insulated cables) require secure anchoring.

2. Building and Construction Industry

In commercial and residential buildings, aluminium cable cleats play a key role in organizing and securing low-voltage (LV) power cables, data cables, or communication lines.

3. Rail and Transportation Infrastructure

Railways, metros, and tram systems rely on aluminium cable cleats to secure power and signaling cables, where vibration, mechanical shock, and dynamic loads are prevalent.

4. Industrial Facilities

In factories, refineries, and manufacturing plants, aluminium cable cleats manage cables in harsh or demanding environments.
