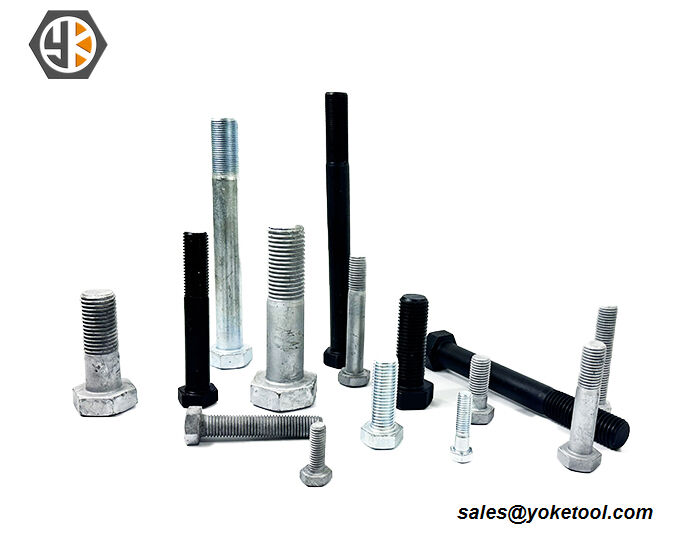

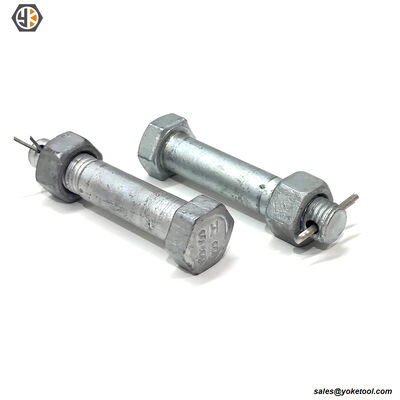

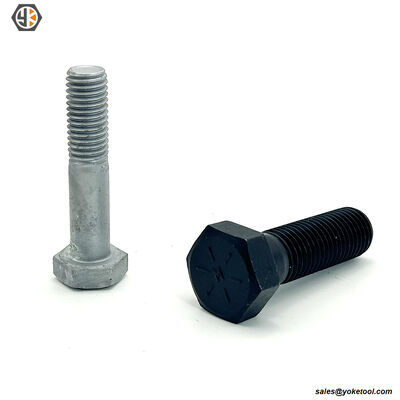

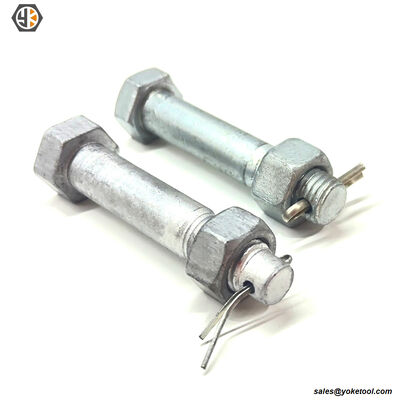

ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts

ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts

    • ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts
    • ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts
    • ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts
    • ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts
    • ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts

    Product Details:

    Place of Origin: CHINA
    Brand Name: Yokelink

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: $0.5~$2.5
    Packaging Details: Carton&Pallet
    Payment Terms: L/C, T/T
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Finish: Hot Dip Galvanized Bolt Size: 1/2", 5/8", 3/4", 7/8", 1", 1-1/4", 1-1/2"
    Length: From 2" To 60" Material: Hight Strength Steel
    Specification: Astm F3125 Grade A449

    ASTM A325 Hex Structural Bolts

    ASTM A325 Structural Bolts are a specialized heavy type of Hex Bolt intended for use in large structures, such as
    buildings and bridges. This bolt is designed to withstand the loads of steel-to-steel structural connections. They contain a flat, washer-faced bearing surface and a chamfered thread point. Galvanized plating protects the bolt from corrosion; typically used in outdoor applications.

    There are different types of Astm F3125 Grade A325 Bolts such as the type 1, 2, 3, T and M. The type 2 is withdrawn and obsolete but the others have different properties and are in use. Each of these bolts also has different connections types as well. The A325 Bolts type 3 bolts are made up of weathering steels. The weathering steel made bolts don’t need coating as the surface become oxidized and the patina acts as a coating against corrosion.

    The Astm a325 type 1 bolts are made of medium carbon, carbon boron or medium carbon alloy steels. These bolts have high toughness as well. But they can be used with different types of coating for corrosion resistance.
    ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts

    Astm A325 Hex Structural Bolt Features:

    Material Steel
    Type Heavy Hex Structural Bolt Assembly
    Grade
    A325 Type 1
    Finish Hot Dip Galvanized
    Head Type Hex
    Thread Style Coarse
    Standards
    ASME B18.2.6, F3125/F3125M, ASTM A563, A153/A153M or F2329/F2329M



    The Application of ASTM A325 Structual Bolt

    ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts
    A325 bolts are ASTM-standard high-strength steel structural bolts (tensile strength ≥827 MPa). They are primarily used in high shear, tensile, and combined load scenarios and are primarily used in steel structure engineering.

    Specific applications include critical connections in high-rise/long-span building steel frames, highway and railway bridges, heavy equipment foundations, and transmission towers. They are capable of withstanding dynamic loads and impacts.

    Special nuts and washers must be used and tightened according to specifications. For outdoor use, choose hot-dip galvanized bolts for corrosion resistance. These bolts are roughly equivalent to GB grade 10.9 and cannot be substituted with ordinary bolts.



    ASTM F3125 Grade A325 Hot Dipped Galvanized Steel Structural Bolt

    Yokelink ASTM A325 Structual Bolts are a specialized heavy type of Hex Bolt intended for use in large structures, such as buildings and bridges. This bolt is designed to withstand the loads of steel-to-steel structural connections. They contain a flat, washer-faced bearing surface and a chamfered thread point. Galvanized plating protects the bolt from corrosion; typically used in outdoor applications.





    ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts



    Buy ASTM A325 Structual Bolt From Yokelink

    ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts ASME B18.2.6 ASTM F3125 A325 Heavy Hex Head Bolts and Nuts
    ASTM A325 was replaced by ASTM F3125 in year 2016, which A325 now becomes a grade under the F3125 specification. When you need A325 Structural Bolts, refer to above our catalog. We offer them in a full selection of sizes. Provide the length, diameter or part number. Our ASTM A325 Structural Bolts are available plain or with Hot dip galvanized ( HDG ) finish. To get a quote on these bolts, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
