Name: 1'' Twin Eye Nut Poleline Deadend Hardware
Brand: Ningbo Yokelink Machinery Co.,Limited
Price: 499.70 USD
Availability: InStock

Home Products Guying & Deadend Hardware

1'' Twin Eye Nut Poleline Deadend Hardware

Product Details:

Place of Origin:	CHINA
Brand Name:	Yokelink

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	>=1000pcs US$0.7
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Material:	Forged Steel	Finishing:	HDG Per ASTM A153
Specification:	ANSI / IEEE Std C135.80	Bolt Size:	3/4", 1"

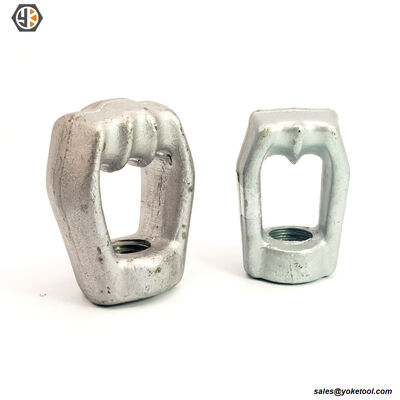

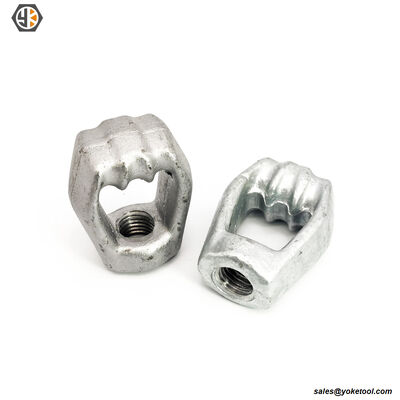

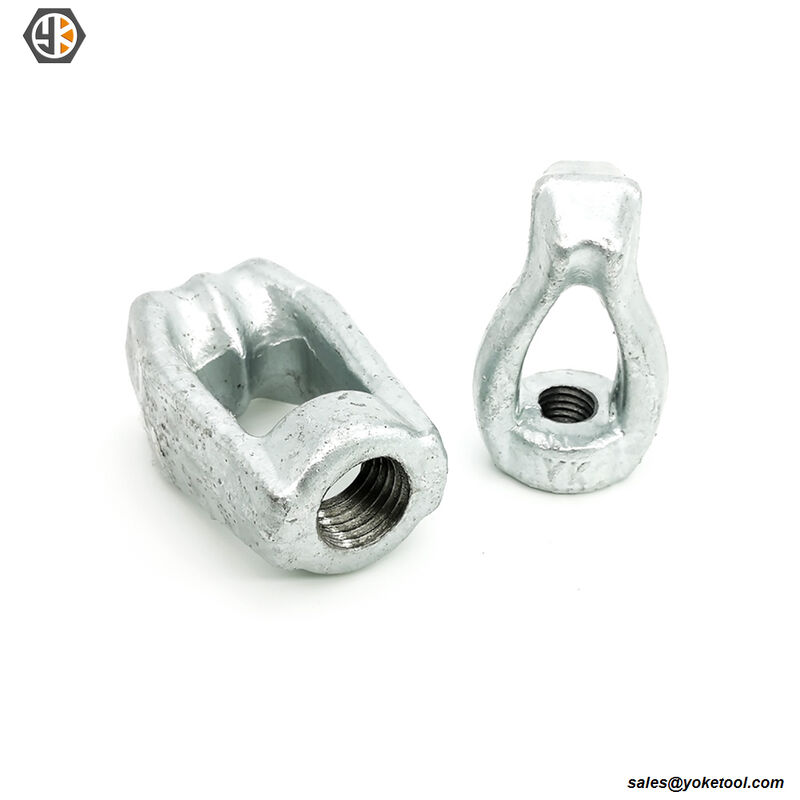

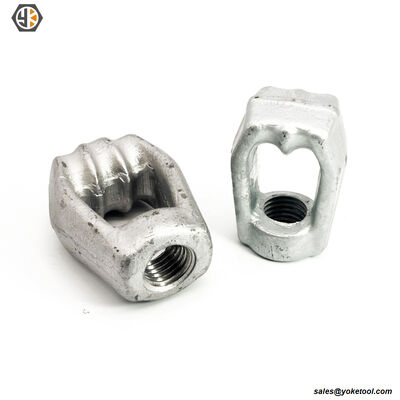

Twin Eye Nut

Yokelink Twin eye nut are used for attaching to thru bolt or thimbleye bolts for straight away head guys. The twin eye nut is assembled with the thread end of 3/4" or 1'' eye bolts, which goes across the wooden pole for supporting the strain insulators to the dead end wire.

Twin Eye Nut made from Drop forged steel, manufactured according to ANSI/IEEE Std C135.80. The finish Hot dip galvanized to meet ASTM A153 specification.

Yokelink Twin Eye Nut Specification

Part No.	Bolt Size	A	B	C	D	Weight
Part No.	Inch	Inch	Inch	Inch	Inch	Kg / Pcs
D0230	3/4	1.58	1.45	1.25	1.70	0.650
D0240	1	1.58	1.45	1.25	1.70	0.630

Buy Twin Eye Nut From Yokelink

Twin Eye Nut, Triple Eye Nut and 1/2 inch Thimble Eye Nuts are available. . When you need Thimble Eye Nuts, refer to above our catalog. We offer them in a full selection of sizes, provide the diameter or part number to get a quote on these Thimble Eye Nuts, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
