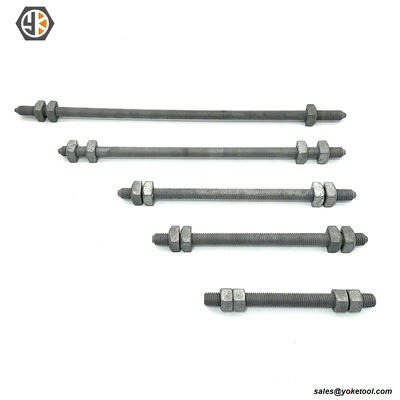

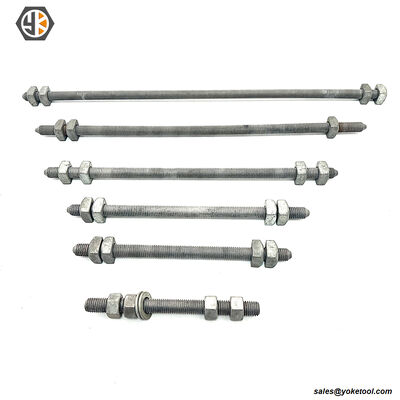

Double Arming Bolt per ANSI C135.1

Product Details:

Place of Origin:	CHINA
Brand Name:	Yokelink

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	$0.5~$2.5
Packaging Details:	Carton & Pallet
Payment Terms:	L/C, T/T
Supply Ability:	50,000 PCS/MONTH

Contact Now

Detailed Product Description

Material::	Carbon Steel	Finish::	Hdg Per Astm A153
Specification::	Ansi/Ieee Std C135.1	Spec.:	Ansi/Ieee Std C135.80
304 Or 316 SS:	Available	Nuts:	Assembly With 4 Square Nuts

Double Arming Bolt

Yokelink Double Arming Bolt used to secure two cable suspension clamps or other attachments on opposite sides of utility pole. Each Double Arming Bolt is supplied with four attached square or hex nuts. Bolt provide with cone point at each end to ease starting. Manufactured from ANSI/IEEE Std C135.80. Hot Dip Galvanized to meet ASTM A153 Class 3.

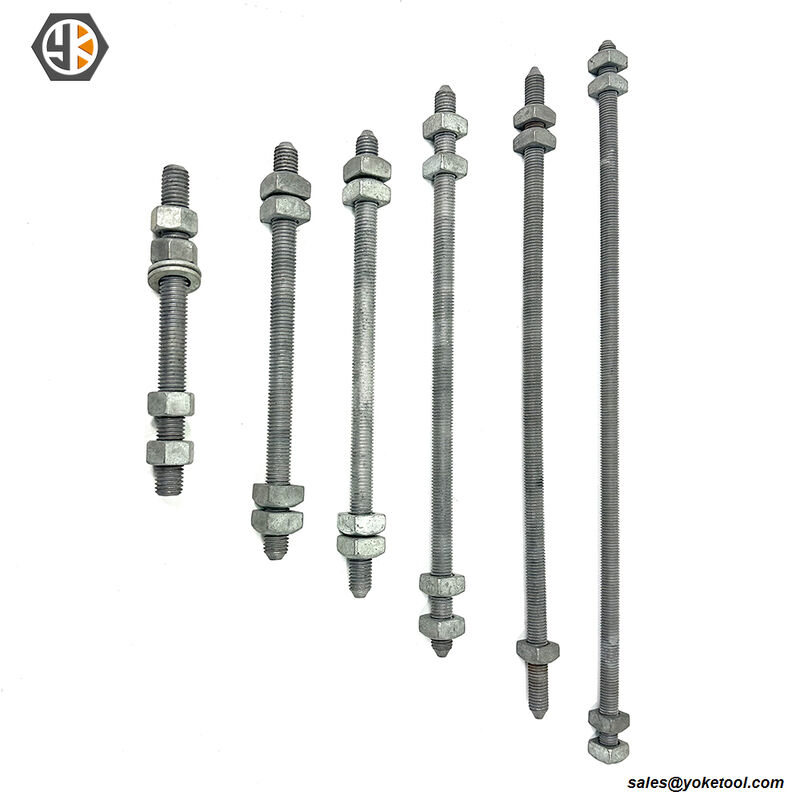

Double Arming Bolt per ANSI C135.1

Other lengths and 1 inch diameter Double Arming Bolts are available. 304 & 316 Stainless Steel double arming bolts are available per the request. When you need Double Arming Bolts refer to above our catalog. We offer them in a full selection of sizes, provide the length, diameter or part number to get a quote on these bolts, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.

What is a Double Arming Bolt?

Double arming bolt is one of the finest pole line and overhead line systems for telecommunication and electrical industries.

In this guide, I am going to show you how to choose a suitable double arming bolt. Among the key things, you will learn about these industrial fasteners include specifications, designs, installation process, etc.

DOUBLE ARMING BOLT FOR UTILITY POLE

As you can see, it is a simple accessory, yet it plays an important role in transmission and distribution lines.

Remember, the double arming bolt is also called a double threaded bolt or double ended bolt.

Uses of Double Arming Bolts

Double arming bolts are used for cross arm and pole line construction purposes.

That is one reason they are very famous.

Due to the fact that their threads are manufactured to go through the poles, their two ends are always locked and kept very safe by washers and nuts.

Double arming bolts are made to help in the cross arm construction and pole line.

They are designed in a way to make their use very easy.

These double threaded bolts play a vital role when you want to install two cross arms on these poles.

It works by securing spaces between two cross arms and fasten two cross arms tightly.

Components of the Double Arm Bolt

It is important for you to know the uniqueness of double arm bolt parts and components.

This will help you when shopping for a suitable double arming bolt for your utility lines.

Below are some of these bolts:

Threaded bolts

Threaded bolts are designed to easily move through the poles and ensure nuts and washers are locked well. Without these threads there is no way fastening can be as tight as it should be.

Nuts

Nuts are vital because they help with the fastening process.Without nuts, there is no way you can have a proper installation in pole lines.When nuts are fastened well, it helps to keep all cables and pole lines stronger.

How about the design of double arming bolts?

Double arming bolts are manufactured with chamfered ends that are round and semi-coned types.

Such cones are made to point at all ends of double arming bolts.

It aids you in driving and removing it from poles with so much ease.

Besides, you will not damage the threads.

They are mainly made from stainless steel, which can be hot dip galvanized.

Of course, you can find double arming bolts made from other materials too.

How to Install a Double Arming Bolt on Poleline

Installing double arming bolts is simple and straight forward. Here is what you should do:

Start by assembling all the necessary tools and equipment. For instance, in case the poles do not have holes, you need a drill.

Also, you need appropriate fasteners.

This will depend on the size of double arming bolt.

You can start by disassembling the nuts and washers from the bolt. In most cases, the double arming bolts come with four square, hex nuts or nuts based on your needs.

Now insert the chamfered round ends of the double arming bolt into the hole in the pole. Push it slowly until it penetrates through to the other end.

You can put another pole line hardware you want to secure using a double arming bolt. With all pole line hardware in place, you can insert the washers, then fasten the nuts on both ends.

And there you are, you have successfully installed a double arming bolt.

Frequently Asked Questions (FAQs)

What is the double arming bolt mainly used for?

The double arming bolt is mainly used on the pole line and overhead line construction.

What are the types of your double arming bolts?

There are many kinds of double arming bolt in the factory, such as full thread double arming bolt and two end thread double arming bolt, mainly size is 3/4 inch and 5/8 inch. We also supply OEM/ODM.

What is the standard of the double arming bolt?

The double arming bolt is made according to UNC or BSW.

Conclusion

I hope you have learned a lot about choosing the right double arming bolts – from the basic definition, installation process, and parts to technical specifications.

With this information, you should be able to buy high quality and reliable double arming bolts.

Do you need pole line hardware or just a double arming bolt?

Yokelink offer them in a full selection of sizes, provide the length, diameter or part number to get a quote on these bolts, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
