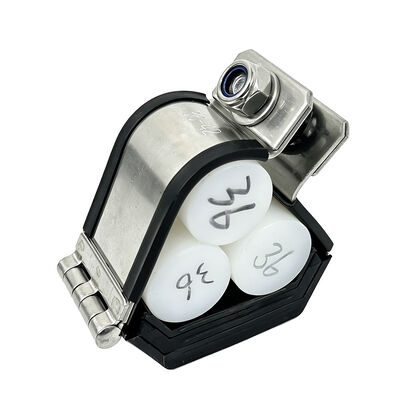

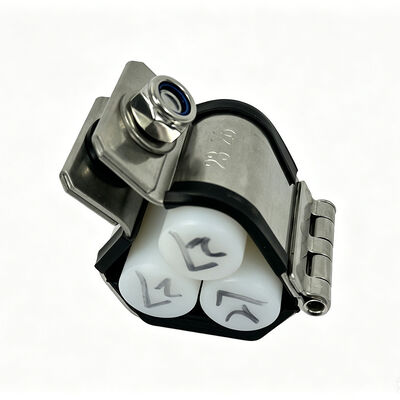

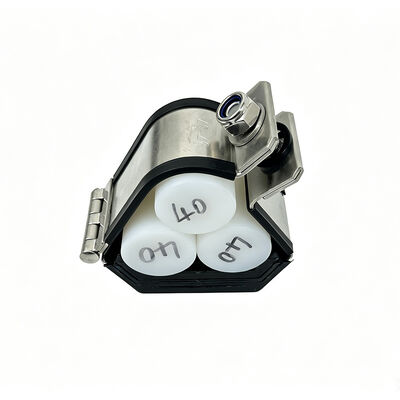

Trefoil Cable Cleats 316L Stainless Steel IEC 61914:2021 Certificated
Yokelink Trefoil Cable Cleats Engineered to IEC 61914 standards, provides ultimate shortcircuit protection for high-voltage cable systems. Featuring a heavy-duty 50x2.1mm nonmagnetic 316L stainless steel frame, Trefoil Cable Cleats eliminates eddy current heating while ensuring superior corrosion resistance. Integrated with LSZH (Low Smoke Zero Halogen) pads and vibration-proof 316L locking hardware, these composite cleats offer a secure solution for demanding marine, oil & gas,Offshore vessels, wind power, data centers, subways and utility applications. Available for Single Type, Trefoil Type and Quad Type.
Why does Trefoil Cable Cleats Stainless Steel so important? The core function of stainless steel cable clamps is to secure high-voltage cables during short-circuit faults, resisting enormous electrodynamic forces and preventing cable displacement, swinging, and damage. IEC 61914 Trefoil Cable Cleats are engineered for secure cable retention and short circuit protection in medium and high-voltage power systems.
Manufactured from non-magnetic 316L stainless steel and tested in accordance with IEC 61914 standards, Yokelink Trefoil Cable Cleats provide outstanding resistance to electromechanical forces, corrosion, vibration, and extreme environmental conditions.
Trefoil Cable Cleats 316L Stainless Steel IEC 61914:2021 Certificated Application :
Trefoil Cable Cleats are widely used in metro and railway tunnels, power substations, offshore oil & gas platforms, marine vessels, renewable energy projects, battery energy storage systems (BESS), wind farms, solar power stations, industrial plants, and data centers.
For tunnel and railway applications, the LSZH (Low Smoke Zero Halogen) liner helps improve fire safety and reduce smoke emission in confined environments. In offshore and marine projects, the 316L stainless steel structure delivers superior corrosion resistance against salt spray and harsh weather conditions.
For substations and utility power networks, YOKELINK Trefoil Cable Cleats provide reliable cable restraint under high short-circuit fault currents, ensuring safe and stable cable installations. In renewable energy and industrial facilities, Trefoil Cable Cleats support long-term outdoor durability, UV resistance, and vibration protection for critical power cables.
Trefoil Cable Cleats IEC61914 Certificated Stainless Steel Cable Cleats characteristic:
● Trefoil Cable Cleats Material: 316 L Stainless Steel, Non-magnetic
● Trefoil Cable Cleats Mounting Bolts: 316L SS, M6/M8/M10/M12 bolts available and Nylon Lock Nuts
● Intergral Pad: Low Smoke, Low Fume, Halogen Free
● Recommended Installation Spacing: 300mm or 600mm
● Trefoil Cable Cleats Packing Methods: Each unit packed in plastic bag first, then packed in strong cartons.
Single Type Cable Cleats Specifications:
For one cable, Tested to IEC 61914: 180kA Peak at 300mm spacing
| Part No. |
Applicable Cable Range |
Weight |
| Outer Diameter ФD (mm) |
Kg / PC |
| FF-S2832 |
27/28/29 |
31/32/33 |
0.326 |
| FF-S3438 |
33/34/35 |
37/38/39 |
0.333 |
| FF-S3239 |
31/32/33 |
34/35/36 |
38/39/40 |
0.381 |
| FF-S3745 |
36/37/38 |
39/40/41 |
44/45/46 |
0.408 |
| FF-S4452 |
43/44/45 |
47/48/49 |
51/52/53 |
0.443 |
| FF-S5159 |
50/51/52 |
53/54/55 |
58/59/60 |
0.478 |
| FF-S5866 |
57/58/59 |
61/62/63 |
65/66/67 |
0.507 |
| FF-S6573 |
64/65/66 |
68/69/70 |
72/73/74 |
0.541 |
| FF-S7385 |
72/73/74 |
74/75/76 |
78/79/80 |
84/85/86 |
0.624 |
| FF-S8494 |
83/84/85 |
85/86/87 |
89/90/91 |
93/94/95 |
0.658 |
| FF-S94118 |
93/94/95 |
97/98/99 |
105/106/107 |
117/118/119 |
0.833 |
| FF-S118130 |
117/118/119 |
119/120/121 |
123/124/125 |
129/130/131 |
0.811 |
| FF-S127150 |
126/127/128 |
130/131/132 |
138/139/140 |
149/150/151 |
0.978 |
| FF-S145155 |
144/145/146 |
154/155/156 |
1.015 |
Trefoil Type Cable Cleats Specifications:
For three cables, Tested to IEC 61914: 180kA Peak at 300mm spacing
| Part No. |
Applicable Cable Range |
Weight |
| Outer Diameter ФD (mm) |
Kg / PC |
| FF-T1823 |
17-18 |
19-20 |
22-23 |
0.410 |
| FF-T2328 |
22-23 |
24-25 |
27-28 |
0.450 |
| FF-T2732 |
26-27 |
28-29 |
31-32 |
0.485 |
| FF-T3035 |
29/30 |
32/33 |
34/35 |
0.512 |
| FF-T3338 |
32-33 |
34-35 |
37-38 |
0.535 |
| FF-T3642 |
35-36 |
37-38 |
41-42 |
0.580 |
| FF-T4046 |
39-40 |
43-44 |
45-46 |
0.615 |
| FF-T4450 |
43-44 |
46-47 |
49-50 |
0.650 |
| FF-T4855 |
47-48 |
50-51 |
54-55 |
0.707 |
| FF-T5562 |
54-55 |
56-57 |
59-60 |
61-62 |
0.771 |
| FF-T5966 |
58-59 |
60-61 |
63-64 |
65-66 |
0.808 |
| FF-T6370 |
62-63 |
64-65 |
64-68 |
69-70 |
0.844 |
| FF-T6774 |
66-67 |
68-69 |
71-72 |
73-74 |
0.881 |
| FF-T7178 |
70-71 |
72-73 |
77-78 |
0.919 |
Please contact us for complete size and model information.
Quad Type Cable Cleats Specifications:
| Part No. |
Applicable Cable Range |
Weight |
| Outer Diameter ФD (mm) |
Kg / PC |
| FF-Q1822 |
17~18 |
19~20 |
21~22 |
0.437 |
| FF-Q2428 |
23~24 |
25~26 |
27~28 |
0.513 |
| FF-Q3034 |
29~30 |
31~32 |
33~34 |
0.570 |
| FF-Q3640 |
35~36 |
37~38 |
39~40 |
0.638 |
| FF-Q4246 |
41~42 |
43~44 |
45~46 |
0.696 |
| FF-Q4852 |
47~48 |
49~50 |
51~52 |
0.757 |
| FF-Q5458 |
53~54 |
55~56 |
57~58 |
0.820 |
| FF-Q6064 |
59~60 |
61~62 |
63~64 |
0.882 |
Trefoil Cable Cleats DNV,ABS,CE,Short circuit test report, low smoke halogen-free report
Yokelink Trefoil Cable Cleats with LSZH Pads: Our integral pads are Low Smoke, Low Fume, and Halogen Free, ensuring maximum personnel safety in confined spaces. Trefoil Cable Cleats Combined with 316L SS frames, they provide IEC 61914 certified short-circuit protection for marine, tunnel, and utility projects. Buy high-safety cable supports now.
Standardized Protection: Fully tested for short-circuit protection in accordance with IEC 61914, providing a critical line of defense for personnel and infrastructure.
Easy Installation: Only a standard wrench is required; includes all necessary mounting hardware for immediate deployment.
YOKELINK Trefoil Cable Cleats IEC 61914 TESTING PROGRESS:
YOKELINK Trefoil Cable Cleats are developed and tested in accordance with IEC 61914, the international standard for cable cleats used in power and short-circuit protection systems. During the IEC 61914 testing process, Trefoil Cable Cleats must undergo rigorous mechanical strength, short-circuit withstand, impact resistance, corrosion resistance, and cable retention tests to verify their performance under extreme fault conditions.
Trefoil Cable Cleats are engineered with non-magnetic 316L stainless steel construction and LSZH liners to ensure reliable cable restraint and long-term durability in demanding environments. Trefoil Cable Cleats have successfully completed short-circuit testing with high fault current performance, including up to 180kA peak withstand capability at specified cable spacing requirements. Throughout the testing procedure, the cleats maintained cable integrity, minimized cable displacement, and prevented damage caused by severe electromechanical forces generated during electrical faults.
The IEC 61914 certification process demonstrates YOKELINK’s commitment to safety, reliability, and international quality standards for medium and high-voltage cable installations. Combined with DNV and ABS approvals, YOKELINK Trefoil Cable Cleats provide trusted solutions for substations, metro tunnels, offshore platforms, renewable energy projects, industrial facilities, and critical infrastructure applications worldwide.
Yokelink FF-T Series Trefoil Cable Cleat Cross-Reference Guide
Looking for Ellis EMPEROR Trefoil and CMP HINGELESS (SDSSH) and ENDURANCE (SDSS-C) equivalents? Yokelink FF-T series Trefoil Cable Cleats offer a 2.1mm 316L SS frame and LSZH pads. IEC 61914 certified with 180kA short-circuit protection. High-performance, cost-effective alternatives for marine and utility projects.
Yokelink FF-T series Trefoil Cable Cleat is a direct equivalent to Ellis EMPEROR Trefoil and CMP HINGELESS (SDSSH) and ENDURANCE (SDSS-C), Panduit CCSSTR
| YOKELINK Trefoil Cable Cleats Part No. |
Cable OD (mm) |
CMP |
Ellis EMPEROR TREFOIL |
Panduit |
| FF-T2328 |
23-28 |
HDSS023028/SDSS023028/SDSS023028H |
ER23-28 |
CCSSTR2328-X |
| FF-T2732 |
26-32 |
HDSS027032/SDSS027032/SDSSC-027032 |
ER27-32/ER27-32TFM12-X |
CCSSTR2632-X |
| FF-T3035 |
30-36 |
HDSS030035/SDSS030035/SDSSC-030035 |
ER30-35/ER30-35TFM12-X |
CCSSTR3036-X |
| FF-T4046 |
40-46 |
HDSS040046/SDSS040046/DSS040046H |
ER40-46/ER40-46TFM12-X |
CCSSTR4248-X |
All third-party product names, logos, and brands (such as Panduit, Ellis Patents, and CMP) are property of their respective owners. Their use in this guide is for identification and cross-reference purposes only, and does not imply any affiliation with or endorsement by them. Yokelink FF Series are independent, high-performance alternatives engineered to meet or exceed industry standards.
Resistance to Electromechanical Force:
Test Cable Outer Dia: 35mm
9.5.2 180kA Perk 300mm Spacing
9.5.3 125kA Perk 600mm Spacing
Why choose YOKELINK as the "best alternative"?
1. Higher Specifications:
YOKELINK's Trefoil Cable Cleats frame thickness is 2.1mm, slightly thicker than the industry standard of 2.0mm,
resulting in greater structural stability under extreme short-circuit forces.
2. Materials Comparable:
Trefoil Cable Cleats use 316L non-magnetic stainless steel and LSZH (Low Smoke Halogen-Free) gaskets,
ensuring compliance in harsh environments such as marine and oil/gas spill conditions.
3. Installation Compatibility:
The mounting hole design references mainstream international standards,
allowing direct installation on existing Panduit or Ellis dedicated cable trays for seamless switching.
How to select Cable Cleats?
1. Know the Cables
- Which type of cable is being used, Single or Multi-Conductor?
- What is the outer diameter of Cables?
- What is the available short circuit current (RMS or IP Peak) of the cable?
- If a ground wire is installed in the cleats, know the outer Diameter of the ground wire.
2. Know the System and Cleat Types
- What is the cable formation, Single or Trefoil?
- What type of the cable tray is installed?
How to install the cable cleats?
1. Remove the top plastic spacer to expose the bolt hole.
2. Place the cleat over the corresponding hole on the rung.
3. Insert the supplied carriage bolt through the hole at the bottom of the cleat.
4. Secure the bolt with the included nut and washer.
If you have any questions or confusion on selecting the cleats models for different cables, please feel free to send us the inquiry details, Our team is ready to offer any clarification or customization options to meet your needs.
