Name: Poleline Hardware CSA 7/8'' X 18'' Square Head Machine Bolts With Nut
Brand: Ningbo Yokelink Machinery Co.,Limited
Price: 0.95 USD
Availability: InStock

Home Products Poleline Fastener

Poleline Hardware CSA 7/8'' X 18'' Square Head Machine Bolts With Nut

Product Details:

Place of Origin:	CHINA
Brand Name:	Yokelink

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	$0.95~$1.25
Packaging Details:	Carton&Pallet
Delivery Time:	40days
Payment Terms:	L/C, T/T
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:	Square Head Machine Bolt	Application:	Fastening Poleline Hardware To Crossarms, Poles And Other Structures.
Material:	Carbon Steel/Stainless Steel	Size:	3/8'', 1/2'', 5/8” And 3/4”
Finishing:	Hot Dip Galvanized

Square Head Machine Bolt

Square Head Machine bolts are used for fastening pole line hardware and line construction specialty products to crossarm poles and other structures as well as attaching the wooden crossarms to the pole. Square head machine bolts have an added semi-cone point and a thread length unique to pole line fasteners depending on the length of the bolts. Square head machine bolts have a square nut assembled.

Yokelink Square head machine Bolt used for fastening poleline hardware to crossarms, poles and other structures. Bolts have rolled threads and supplied with square or Hex Nuts per customer require. Bolts 8 inches or longer have cone-type points to ease starting.

Manufactured from ANSI/IEEE Std C135.80 and ASME B18.2.1. Hot Dip Galvanized to meet ASTM A153 Class 3.

Square Head Machine Bolt Specifications:

Square Head Machine Bolt Application:

Square head machine bolt for utility pole and crossarm construction. Rated for 12,400 lbs. tensile strength. Includes one assembled square nut, cone point and 4" thread length. Common industry slang reference is crossarm bolt or through bolt.

Yokelink pole line construction fasteners consist of machine and carriage bolts, flat, curved square and round washers, lock washers, washer nuts, locknuts, staples and lag screws. All products are designed and manufactured per applicable electric utility and communications industry standards.

Hot dip galvanized finish per ASTM A-153
Manufactured in compliance with industry standard ANSI/IEEE C135.1
RUS listed, c - Bolt, machine

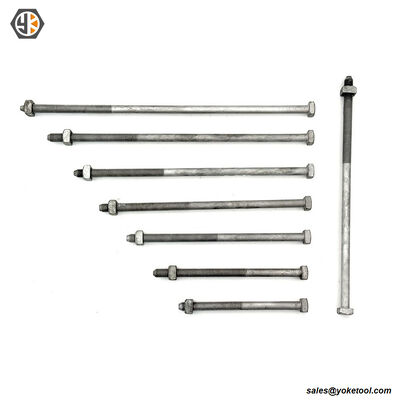

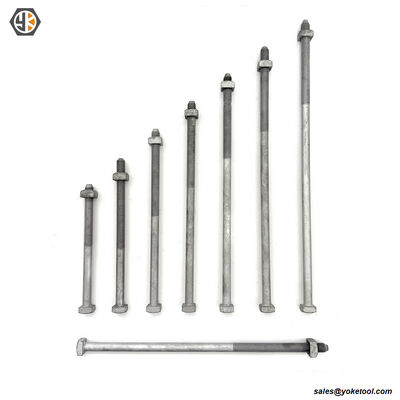

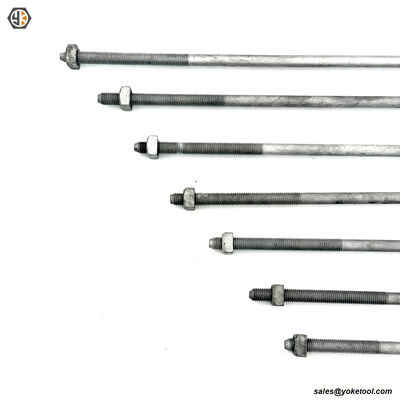

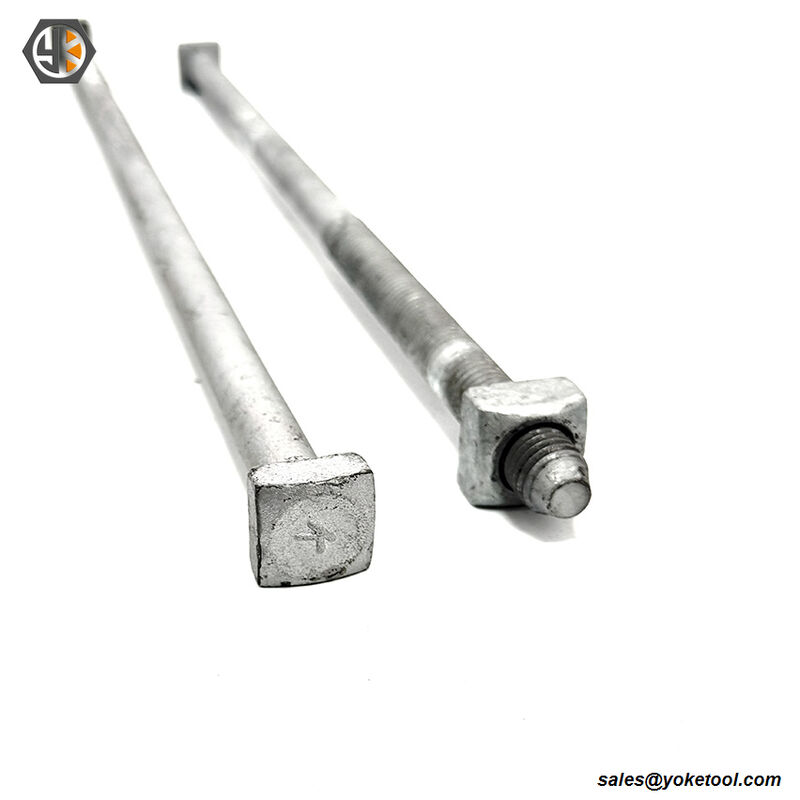

Square Head Machine Bolt Pictures:
