Name: Cast Ductile Iron Guy Hook Power Lines Casting
Brand: Ningbo Yokelink Machinery Co.,Limited
Price: 0.35 USD
Availability: InStock

Home Products Poleline Casting

Cast Ductile Iron Guy Hook Power Lines Casting

Product Details:

Place of Origin:	CHINA
Brand Name:	Yokelink

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	$0.35~$1.95
Payment Terms:	T/T

Contact Now

Detailed Product Description

Pole Line Hardware Poleline Casting ASTM A563 Ductile Iron Casting

Ductile Cast Iron Pole line hardware refers to various components and fittings used in the Construction and installation of utility poles and overhead power lines. These components are typically made of ASTM A536 Ductile Iron, a durable and strong material that is able to withstand the weight and tension of power lines.

Some common examples of Ductile cast iron pole line hardware include Thimble Clevis, Insulator mounting brackets, Pole Top insulator Bracket, Vertical Insulator Bracket, Cuout and Arrester Bracket, messenger extension, Aerial Suspension Clamp , Crossarm Grid Gain, Guy Hook and Pole Eye Plate. These components are essential for supporting and securing power lines, Insulators, and other equipment on utility poles.

Cast iron pole line hardware is known for its long-lasting durability and resistance to corrosion, making it a popular choice for utility companies and power line installers. It is important to use high-quality and properly installed hardware to ensure the safety and reliability of overhead power lines.

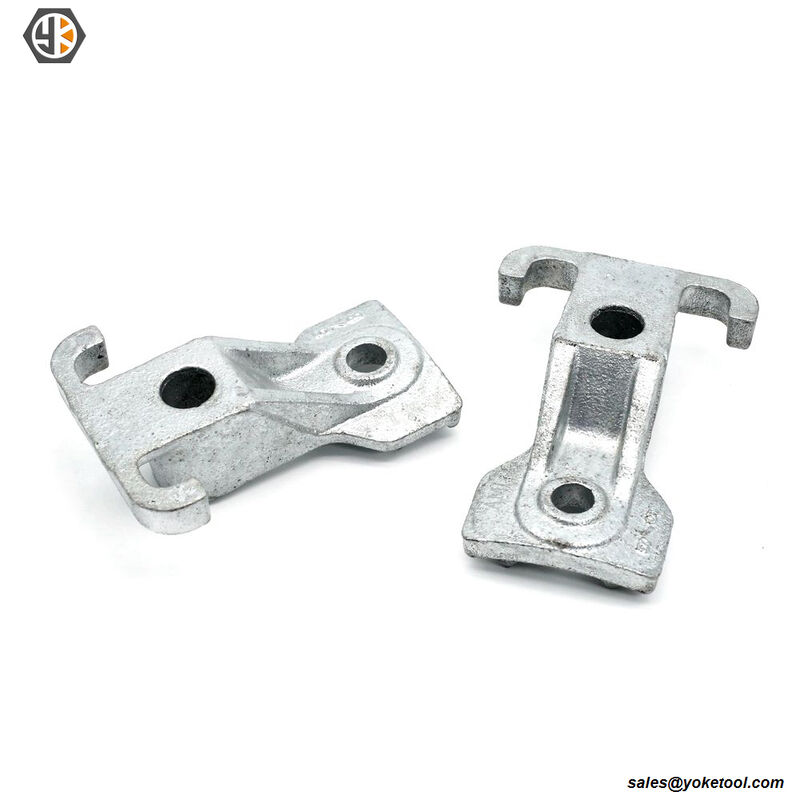

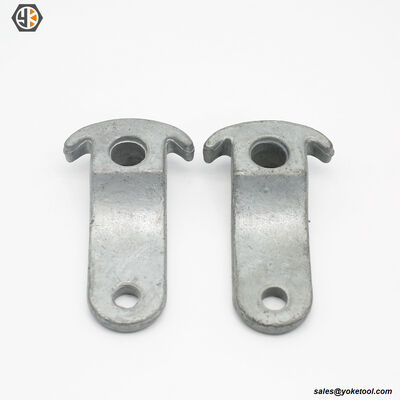

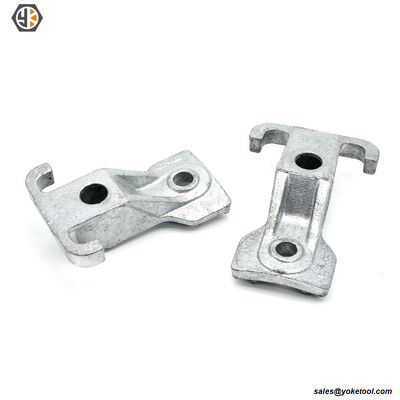

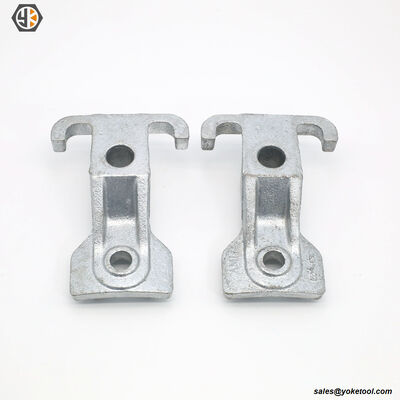

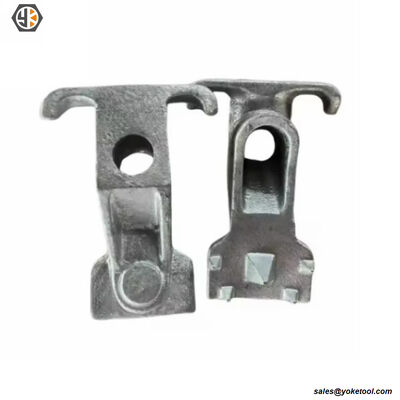

Poleline Casting : Ductile Iron Guy Hook Attachment

Yokelink Ductile Iron Guy Hook used in down or span guy applications. Spurs resist down slotting. The guy hook is designed to provide a strong anchor point for the guy wire, which helps to stabilize the pole and prevent it from leaning or falling over.Hot Dipped Galvanized per ASTM A-153.

Poleline Casting : Ductile Iron Sidewalk Guy Fitting

Yokelink Sidewalk Guy Fittng made from Ductile cast Iron per ASTM A536, are used with standard pipe near sidewalks and buildings wehre there is insufficient space for standard guying and where head clearance must be maintained. All components are hot dip Galvanized to meet ASTM Specification A153.

- Secured to pipe with 1/2" x 3/4" set screw (included)
- One 11/16" and two 9/16" pole mounting holes in casting
- Clamp body and keeper plates are ductile iron per ASTM A-536 and galvanized per ASTM A-153

Poleline Casting: Ductile Iron Thimble Clevis

Yokelink Thimble Cleivs are used for attaching Guy to pole eye plate. It consists of a Clevis, which is a U-shaped metal fitting with holes at the ends, and a thimble, which is a metal or synthetic insert that protects a loop of wire rope or cable. The thimble is inserted into the clevis and secured with a pin or Bolt, creating a strong and secure connection point. The thimble clevis is widely used on pole lines, overhead lines, and transmission tower lines.Hot dip Galvanized to meet ASTM A153 specification.

Poleline Casting : Ductile Iron Pole Top Bracket

The pole Top Bracket is a type of pole line hardware used in the Construction of overhead power lines. It is a metal bracket that attaches to the top of a utility pole and provides a secure mounting point for various types of equipment, such as transformers, Insulators, and crossarms.Yokelink Pole Top Bracket used for mounting post type Insulators on the top of utility poles. Bracket made from ductile iron steel. Hot dip galvanized to meet ASTM Specification A153.

Yokelink supply a full line of Ductile cast iron poleline hardwares, , provide part number to get a quote on these products, leave your message, or send us an email to get answers for your questions or product you needed.
