Name: 3/4"X66" Tripleye No-Wrench Anchor Rod
Brand: Ningbo Yokelink Machinery Co.,Limited
Price: 9.50 USD
Availability: InStock

Home Products Anchor rods & Ground rods

3/4"X66" Tripleye No-Wrench Anchor Rod

Product Details:

Place of Origin:	CHINA
Brand Name:	Yokelink

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	$7.5~$13
Packaging Details:	Pallet
Payment Terms:	T/T

Contact Now

Detailed Product Description

Product Name:	3/4"X66" Tripleye No-Wrench Anchor Rod	Size:	3/4"X66"
Helix Size:	6''	Material:	Forged Steel
Finish:	Hot-dipped Galvanized Per ASTM A153.

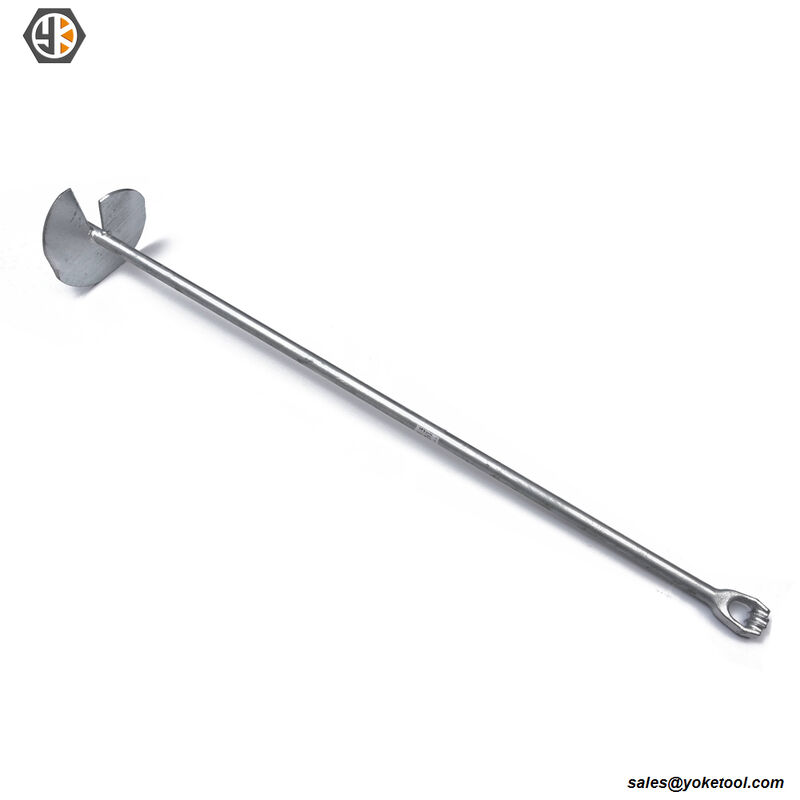

3/4" X 66" Tripleye No-Wrench Anchor Rod

Yokelink 3/4" X 66" Triple No Wrench Anchor, 6'' Helix is used for securing up to 3 guy wires at a utility pole.

No Wrench Anchors are installed by simply turning anchor into ground. No Wrench Anchors may be driven by hand or with power equipment.

Eye dimensions are the same as Anchor Rods.

Screw anchors consist of an unthreaded triple eye rod with an angled point, and a firmly welded helix.

3/4" X 66" Triple No Wrench Anchor, 6'' Helix Features:

● Hot dip galvanized to meet ASTM Specification A153.

● Holding strength per soil class for 3/4" rod:

● Soil Class 5: 6500 lbs

● Soil Class 6: 5000 lbs

● Soil Class 7: 2500 lbs

● Typical working torque is 400 ft lbs.

Yokelink No Wrench Anchor Specification

Part No.	Rod Size(A)	Rod Length(B)	Helix Size(C)	Weight
Part No.	Inch	Inch	Inch	Kg / Pcs
E023454	3/4	54	4	3.680
E023466	3/4	66	6	4.950
E021066	1	66	8	8.680
E0211466	1 1/4	66	10	13.770
E0211496	1 1/4	96	10	18.680

What is No Wrench Anchor ?

No Wrench Anchor, also known as a No Wrench Screw Anchor or Helical Ground Anchor, is a type of ground anchor designed for easy installation without the need for special wrenches or heavy-duty equipment. It’s typically used in applications where stable, secure anchoring is required, such as securing poles, fences, or other structures to the ground.

Application of No Wrench Anchors including:

Yokelink's No Wrench Screw Helical Ground Anchors are designed to be versatile and effective in a wide range of applications. They can be used for:

1. Utility Pole Stabilization:

Keeping poles steady even in high-wind or loose soil conditions.

2. Fencing and Tethering:

Providing secure grounding for agricultural, residential, or commercial fencing.

3. Sign and Lighting Installations:

Perfect for anchoring signs, light poles, and other outdoor structures.

4. Soil Erosion Prevention:

Offering an affordable, efficient solution for slope stabilization and erosion control.

Where to buy No Wrench Screw Anchor Rod Welded Helix?

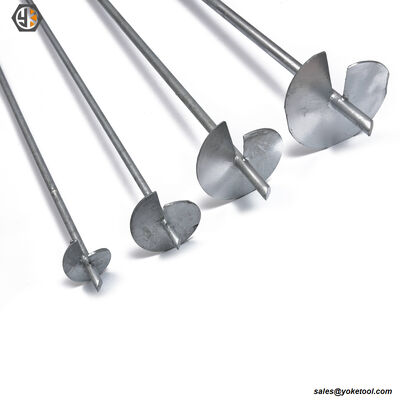

Yokelink is the earth anchor - No Wrench Screw Anchor Rod manufacturers in China, we can provide you with excellent No-Wrench Screw Anchor at an affordable cost. Below is some real photos of No Wrench Screw Anchor Rod. If you have any questions, please contact us for more information.

Contact Details

Ningbo Yokelink Machinery Co.,Limited

Contact Person: Mr. Tony

Tel: 86-574-86882908
