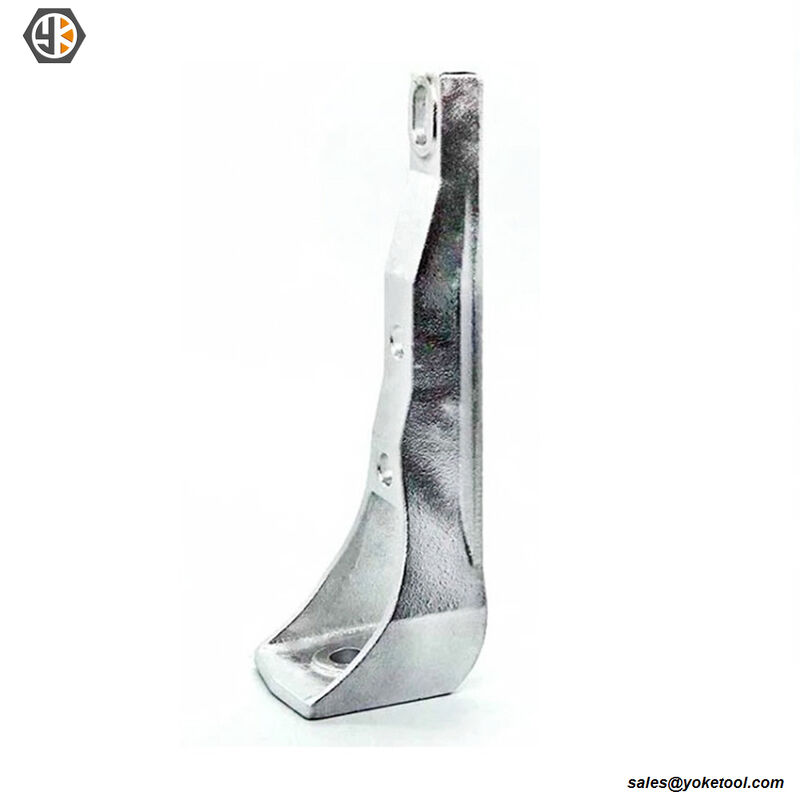

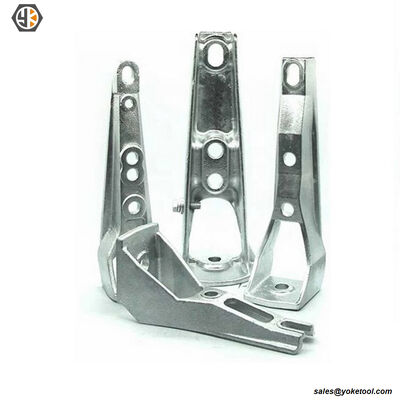

Ductile Iron Cast Pole Top Mounting Brackets

Pole Top Bracket


The Pole Top Bracket is a type of pole line hardware used in the construction of overhead power lines. It is a metal bracket that attaches to the top of a utility pole and provides a secure mounting point for various types of equipment, such as transformers, insulators, and crossarms.Yokelink Pole Top Bracket used for mounting post type Insulators on the top of utility poles. Bracket made from ductile iron steel. Hot Dip Galvanized to meet ASTM Specification A153.


Specification:

The pole top bracket is installed against flat pole gains. YOKELINK pole top bracket is designed to mount post type insulators by means of a single 19mm (3/4) diameter stud bolt. Mounting surfaces of brackets contain a non-tap hole of 20.5mm in diameter post insulators to be mounted on these pole top brackets.
The Pole top bracket is made to permit mounting on wood poles by two 16mm diameter bolts vertically spaced 203mm center to center. One of the bracket mounting holes is slotted to permit slight variations in mounting bolt spacing. The insulator mounting surface is at a height approximately 125mm above the top bracket mounting hole.The pole top bracket needs to have strong and durable foundations to provide support even during storms and disasters. So it’s important to find a good pole top bracket manufacturer and supplier. YOKELINK has worked on producing the pole top bracket since 2014 and is ready to solve your problems and reduce your cost

When you need Cast ductile iron Sidewalk Guy Fitting, refer to above our catalog. We offer them in a full selection of sizes, provide the diameter or part number to get a quote on these Cast ductile iron Sidewalk Guy fitting, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
